Time of Day: Runtime Day/Night Lighting System

What was actually in the box

The level arrived fully baked: 1.1 GB of lightmap data, a Static directional light at 1 lux, and a Post Process Volume that explicitly forced Lumen global illumination and reflections to None. The project was also running DX11 with Shader Model 5, so Lumen and Virtual Shadow Maps were not merely disabled — they were unavailable.

That rules out the obvious approach. You cannot brighten a baked night into a day, because every bounce you can see is stored in a lightmap that was solved for one sun position. A day version means a second bake, and a second bake means every subsequent tweak costs hours.

Removing the bake

I moved the project to DX12 / SM6 and enabled Virtual Shadow Maps, then set the sun, the sky light and all 49 local lights to Movable, with the sky light on Real-Time Capture. The 1.1 GB of built lighting data had to leave the content directory entirely: with the sun Movable it no longer contributes, but Unreal will still apply the stale baked night on top of Lumen if the file is present.

I chose software Lumen over hardware ray tracing. Switching to DX12 would have silently activated the project’s dormant ray-tracing flags across every level, and the target here was a playable frame budget on a mid-range GPU, not a maximum-quality still.

The important constraint was blast radius. This project contains around thirty other levels that are still baked, so Lumen is enabled only on this one, through its own Post Process Volume overrides, rather than by flipping the project-wide default. Nothing else in the project changed appearance.

The system

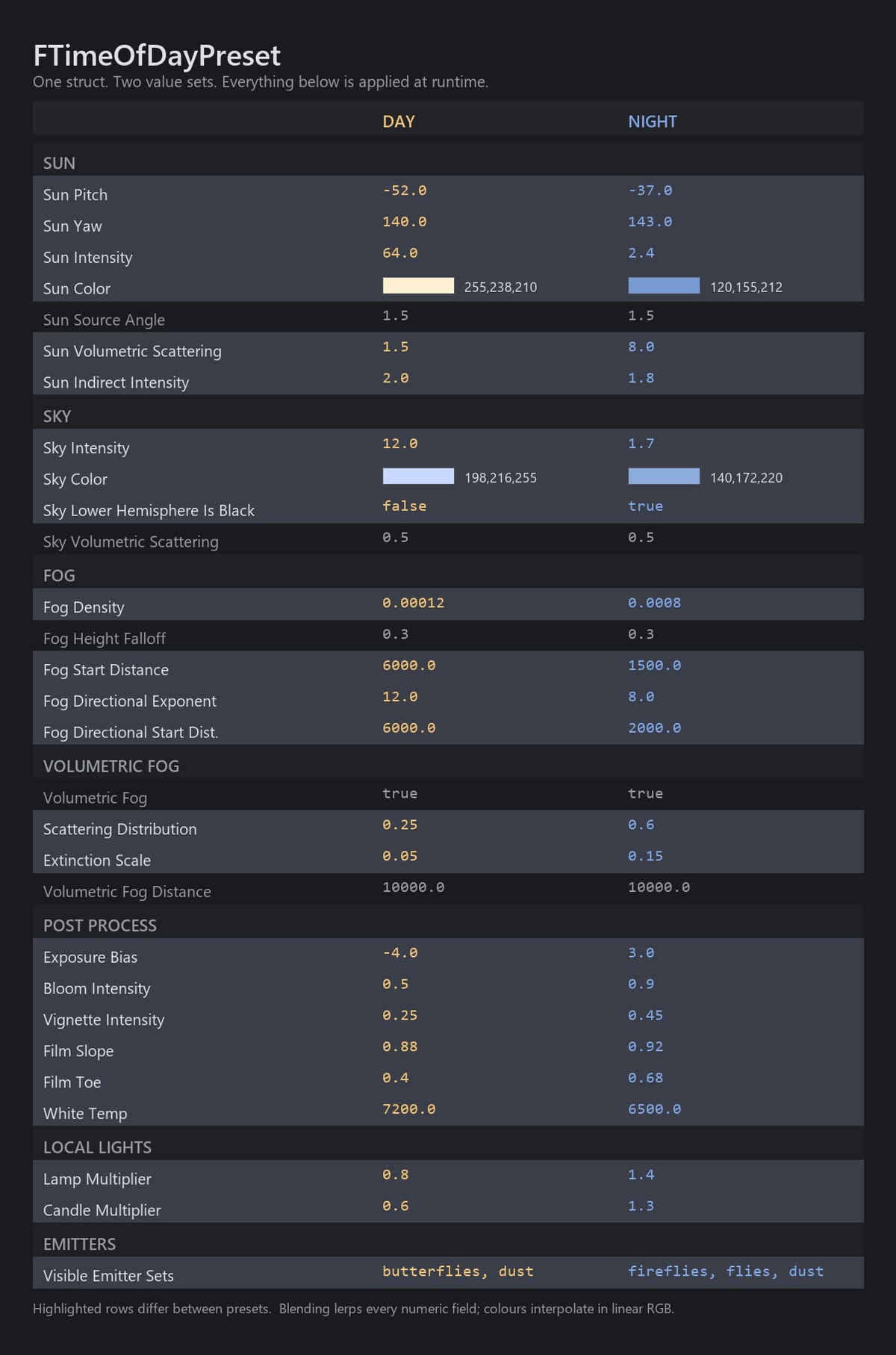

The controller is a C++ actor holding two instances of one struct. A preset describes an entire look: sun angle, colour, intensity and volumetric scattering; sky intensity and colour; height fog and volumetric fog; the post-process grade; multipliers for the level’s local lamps; and which particle systems are visible.

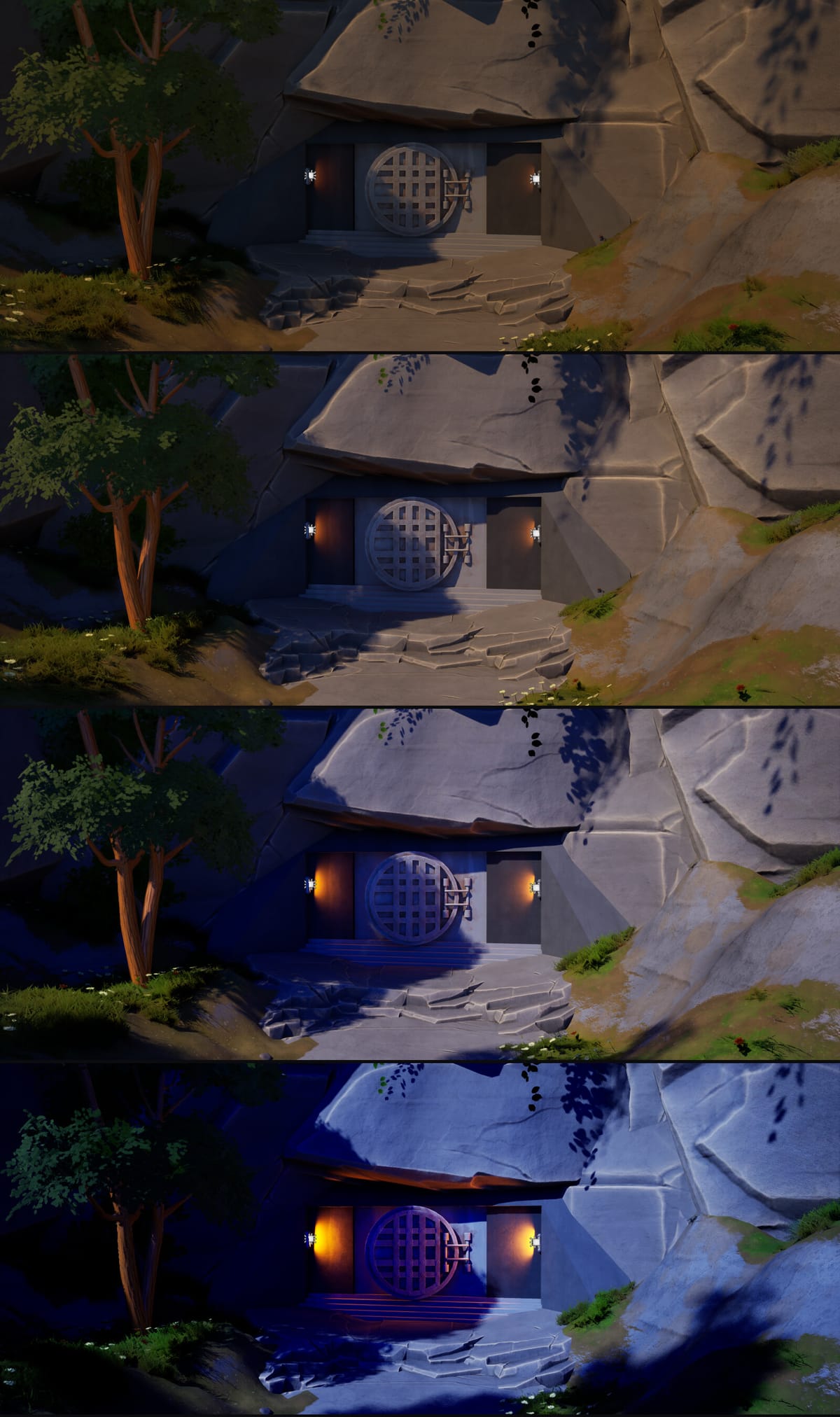

Apply Day and Apply Night are exposed as editor buttons, so the viewport updates live while you tune, and the same code path runs at runtime. Because a look is data rather than a saved level state, blending between the two is a lerp across the struct.

One design detail mattered more than it looks. The local lamp multipliers scale relative to a saved record of what is already applied, not to a sampled baseline. The first version sampled live intensities on load — which meant every reload treated the already-scaled values as the new baseline, and the multiplier compounded silently. The lamps had reached 2.7× their authored brightness before I caught it.

Making it cheap enough to run

The pack’s candle Blueprint carries a point light with dynamic shadows enabled. That is invisible in a baked scene and ruinous in a dynamic one: 132 candle instances meant 132 shadow-casting lights, each of them a 10-lumen source with a 200 cm radius — the kind of light whose shadows nobody will ever see.

Turning shadows off on that one component took the level from 143 dynamic shadow casters to 11. I applied it as a per-instance override rather than editing the shared Blueprint, because other levels in the project use the same asset and none of them asked for a lighting change.

Three bugs worth writing down

Renders came out white while the viewport looked correct. The editor viewport applies physical camera exposure — f/4, 1/60 s, ISO 100, about 9.9 EV of it — and Movie Render Queue does not. Every value I had tuned by eye in the viewport was roughly ten stops too bright when rendered. Pinning that setting off in both paths and re-baselining the exposure bias closed the gap. I was wrong twice before I found it.

Volumetric fog effectively only exists at Cinematic scalability. Movie Render Queue forces Cinematic through its Game Override settings, so fog I had tuned in a default viewport — where volumetric fog is quietly off — rendered as an opaque white-out. It was around seventy-five times too dense. Fog tuning now happens with the viewport pinned to Cinematic, which is the only way what you see matches what renders.

The blend flashed magenta at its midpoint. Interpolating light colour with Unreal’s HSV lerp takes the long way round the hue wheel between a warm sun and a cool moon, and passes straight through magenta on the way. Linear RGB fixed it, and the midpoint now reads as a believable dusk.
